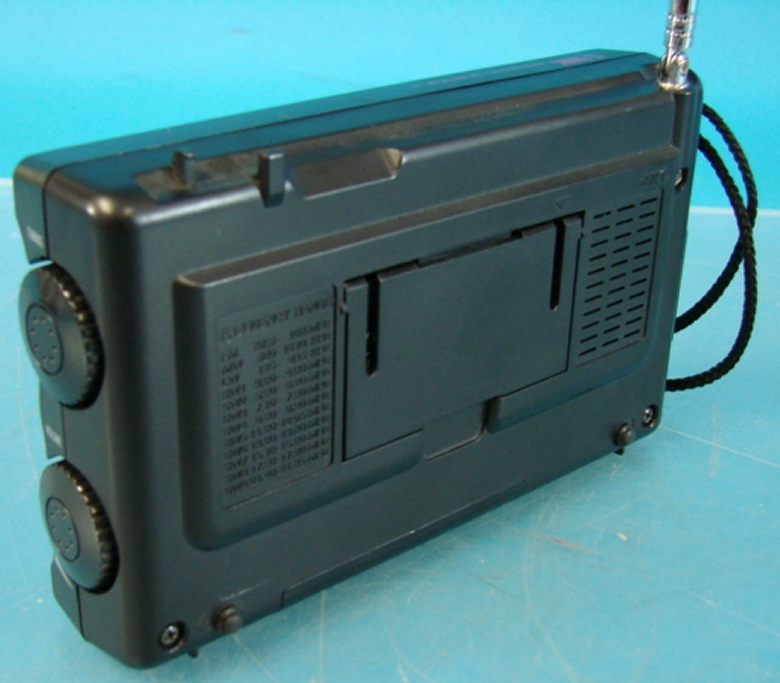

Grundig Yacht Boy 205
| Type: |
HF/VHF receiver |
| Frequency Range: |
SW1: 3.90-4.0 MHz
SW2: 5.90-6.20 MHz
SW3: 7.10-7.50 MHz
SW4: 9.50-9.90 MHz
SW5: 11.65-12.05 MHz
SW6: 13.50-13.90 MHz
SW7: 15.10-15.60 MHz
SW8: 17.50-17.90 MHz
SW9: 21.40-21.85 MHz
LW: 145-285 kHz
MW: 520-1600 kHz
FM: 87.5-108 MHz |
| Mode: |
AM/WFM Stereo |
| Memories: |
N/A |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7.5 VDC (5x AA Batteries) |
| Current Drain: |
Max ? mA |
| Impedance: |
? ohms or telescopic whip and ferrite bar |
| Dimensions (W*H*D): |
217 x 140 x 42 mm |
| Weight: |
0.6 kg |
| Manufactured: |
200x-200x |
| Other: |
|
| Related Documents: |
|
 |
